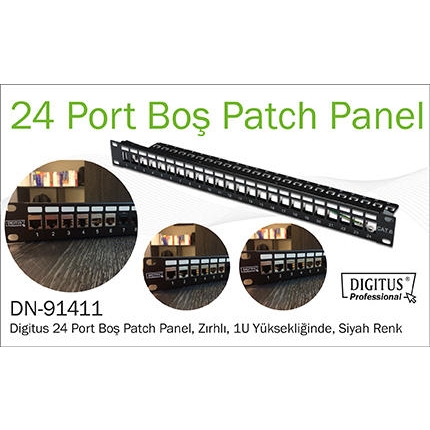

DIGITUS Professional Modular Patch Panel, 24-port

DN-91411
EAN 4016032280798

• Description

  DIGITUS Modular Patch Panel, shielded 24-port, blank, 1U, rack mount, color black RAL 9005

  Technical Details

  • Layout Keystone Entry: Straight
  • Area of application: 483 mm (19") cabinet
  • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
  • General properties:
  • Suitable for 483 mm (19") cabinet mounting
  • Suitable for shielded Digitus® Keystone Modules and Couplers
  • Central ground connection
  • Technical properties:
  • Housing material: 1.5 mm SPCC cold rolled stell sheet, powder-coated
  • Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE, NFA 36/401
  • Grounding bar material: Galvanized steel
  • Grounding wire: 18 AWG, 40 cm
  • Physical properties:
  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Number of buses/couplings: 24
  • Suitable for number of connectors: 24
  • Type of connector: RJ45 8(8)
  • Screened: yes
  • Category: Other
  • Connection type: Other
  • Number of height units: 1
  • Colour: Black
  • RAL-number: 9005
  • Mounting method: 482.6 mm (19 inch) mounting
  • Height: 44 mm
  • Width: 483 mm
  • Depth: 15 mm
