| Model |

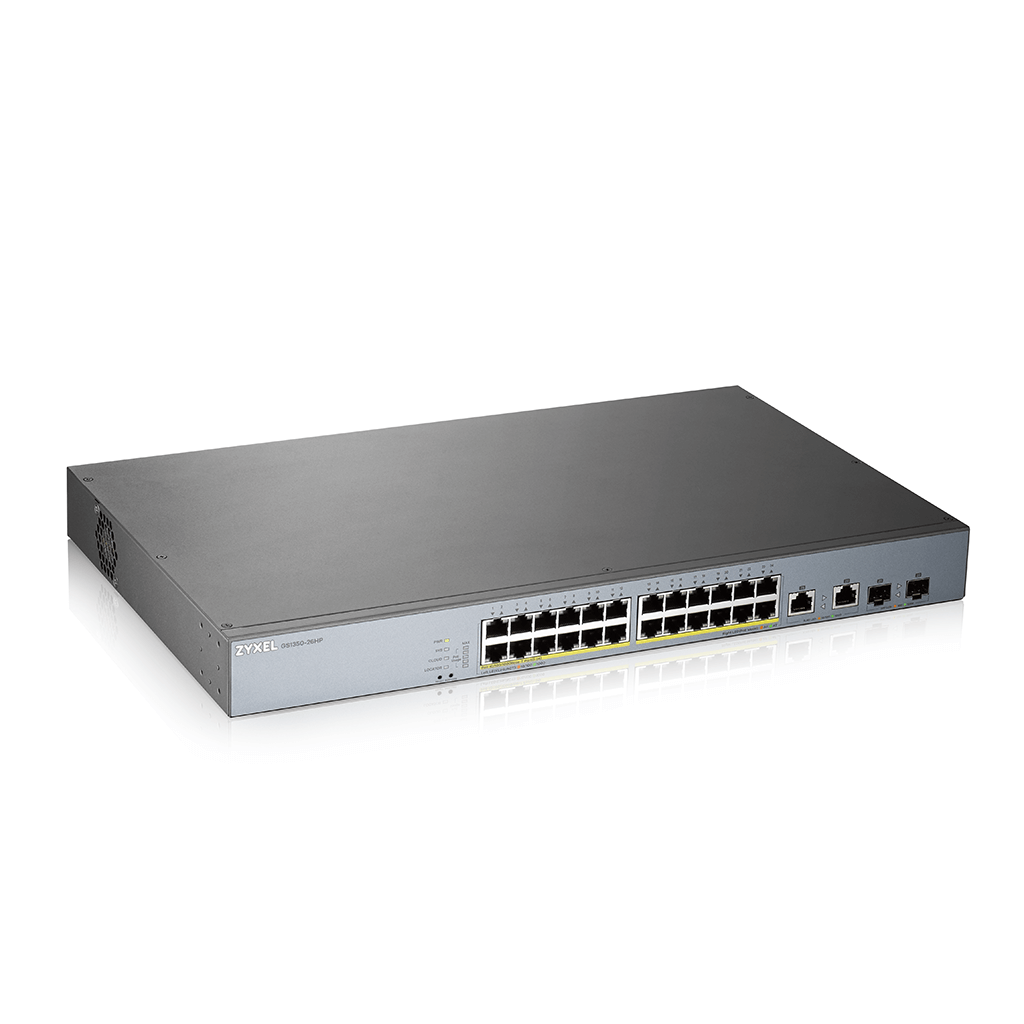

| Product name | 5-port GbE Smart Managed PoE Switch with GbE Uplink | 8-port GbE Smart Managed PoE Switch with GbE Uplink | 16-port GbE Smart Managed PoE Switch with GbE Uplink | 24-port GbE Smart Managed PoE Switch with GbE Uplink |
| Switch class | Smart Managed | Smart Managed | Smart Managed | Smart Managed |
| Port Density |
| Total port count | 6 | 12 | 18 | 26 |
| 100/1000 Mbps | 5 | 10 | 16 | 24 |
| Gigabit SFP | 1 | 2 | - | - |
| Gigabit combo (RJ-45/SFP) | - | - | 2 | 2 |
| Configurable extended range ports | 5 | 8 | 16 | 24 |
| PoE |
| PoE ports | 5 | 8 | 16 | 24 |
| Total PoE budget (watt) | 60 | 130 | 250 | 375 |
| PoE Standard | 802.3af/at
802.3bt (port 1-2) | 802.3af/at | 802.3af/at | 802.3af/at |
| Performance |
| Switching capacity (Gbps) | 12 | 24 | 36 | 52 |
| Forwarding rate (Mpps) | 8.9 | 17.8 | 26.7 | 38.7 |
| Packet buffer (byte) | 525 K | 525 K | 525 K | 525 K |
| MAC address table | 8 K | 8 K | 8 K | 8 K |
| Power |
| Input | 52 V - 57 V DC | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz |
| Max. power consumption (watt) | 72 | 160.3 | 300.9 | 448.9 |
| Physical Specifications |
| Dimensions (WxDxH)(mm/in.) | 193 x 84 x 26 /
7.6 x 3.31 x1.02 | 267 x 162 x 44 /
10.51x 6.38 x1.73 | 330 x 230 x 44 /
12.99 x 9.06 x1.73 | 441 x 270 x 44 /
17.36 x10.63 x 1.73 |
| Weight (kg/lb.) | 0.41/0.9 | 1.63/3.59 | 2.42/5.34 | 3.58/7.89 |
| Included accessories | - Power adapter
- Wall-mount kit
| - Power cord
- Rack mounting kit
| - Power cord
- Rack mounting kit
| - Power cord
- Rack mounting kit
|
| ESD/Surge Protections |
| Ethernet port surge protection | 4 KV | 4 KV | 4 KV | 4 KV |
| Power supply surge protection: Line-GND | 4 KV | 4 KV | 4 KV | 4 KV |
| Power supply surge protection: Line-Line | 2 KV | 2 KV | 2 KV | 2 KV |
| Ethernet port ESD protection (air/contact) | 15 KV/8 KV | 15 KV/8 KV | 15 KV/8 KV | 15 KV/8 KV |
| Environmental Specifications |
| Operating | Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing) | Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing) | Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing) | Temperature -20°C to 50°C/-4°F to 122°F
Humidity 5% to 95% (non-condensing) |
| Storage | Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing) | Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing) | Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing) | Temperature -40°C to 70°C/-40°F to 158°F
Humidity 5% to 95% (non-condensing) |
| MTBF (hr) | 2,021,885.87 | 1,065,025.45 | 1,699,692.18 | 888,495 |
| Heat dissipation (BTU/hr) | 245.52 | 546.62 | 1,026.07 | 1,530.75 |
| Acoustic noise @ 25°C (dBA) | 0 (Fanless) | 27.3 | 39 | 40.1 |
