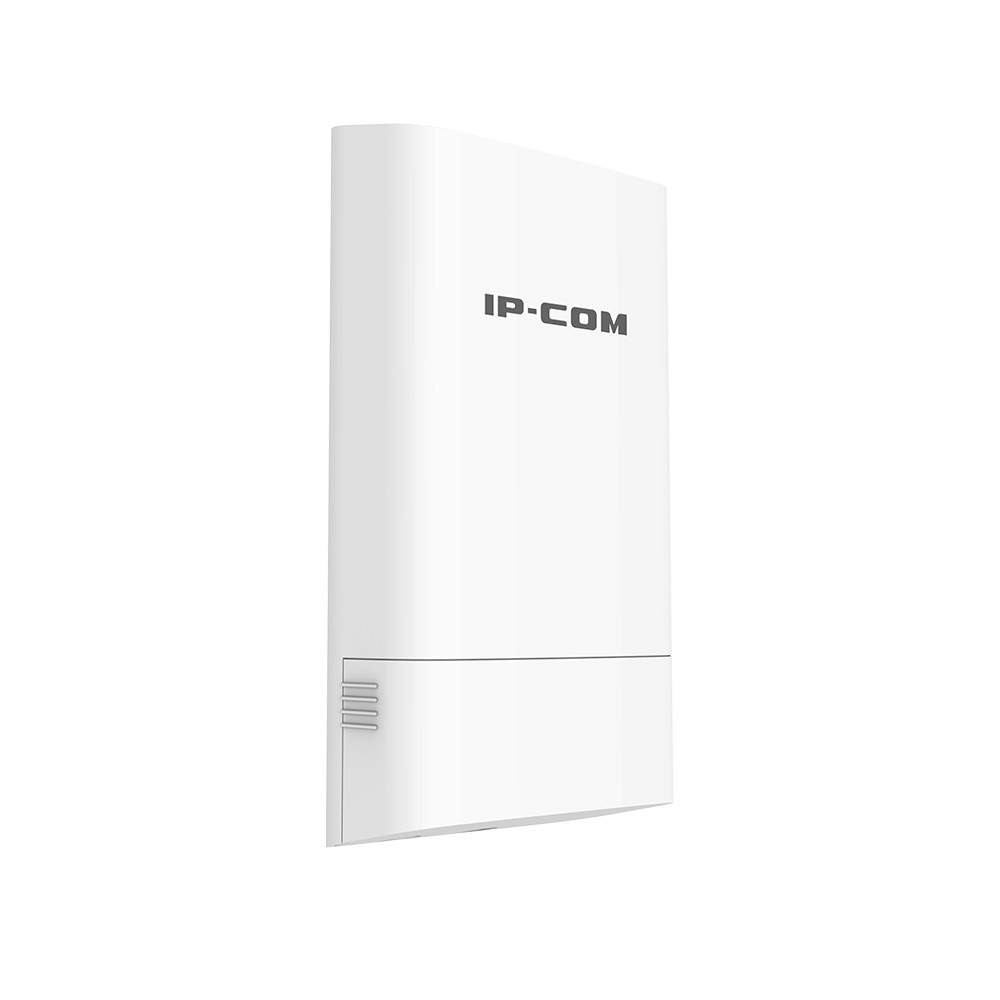

CPE5

Dimensions

132*72*46.3mm

Deployment

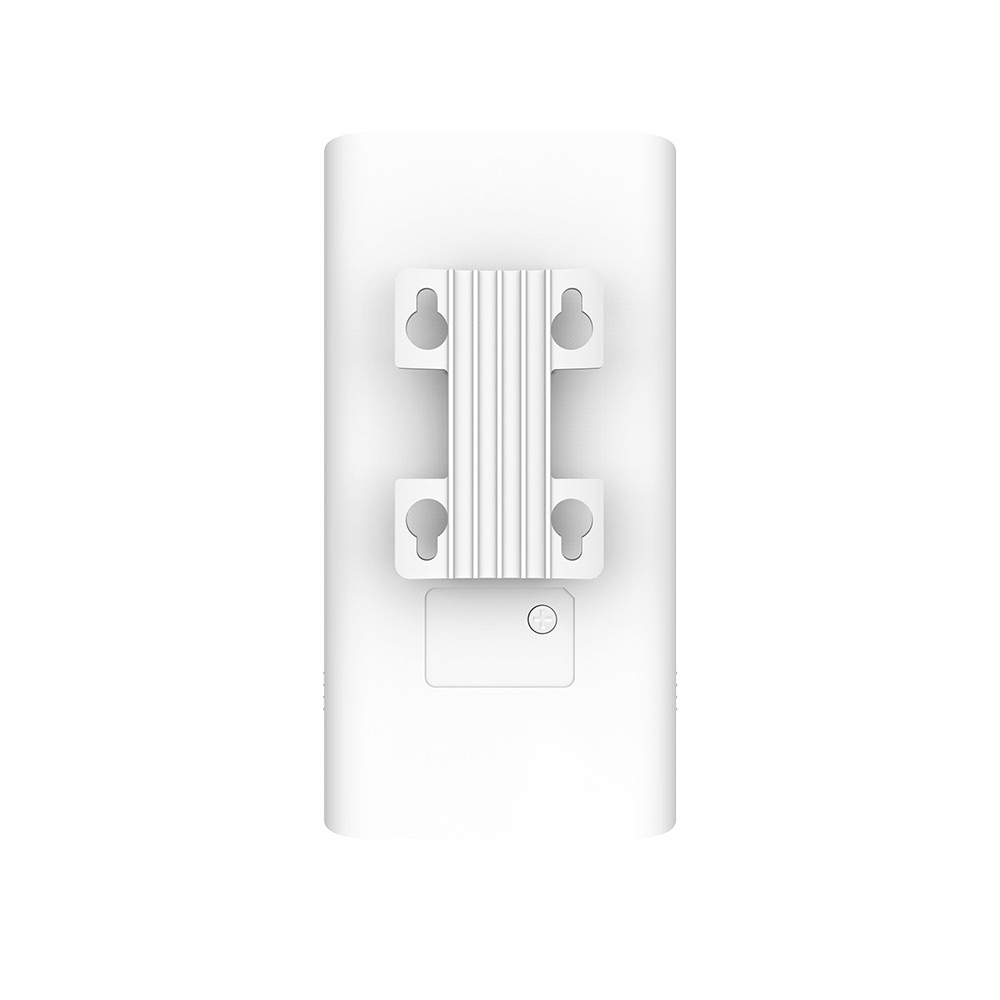

Pole/Wall Mount

Application Scenarios

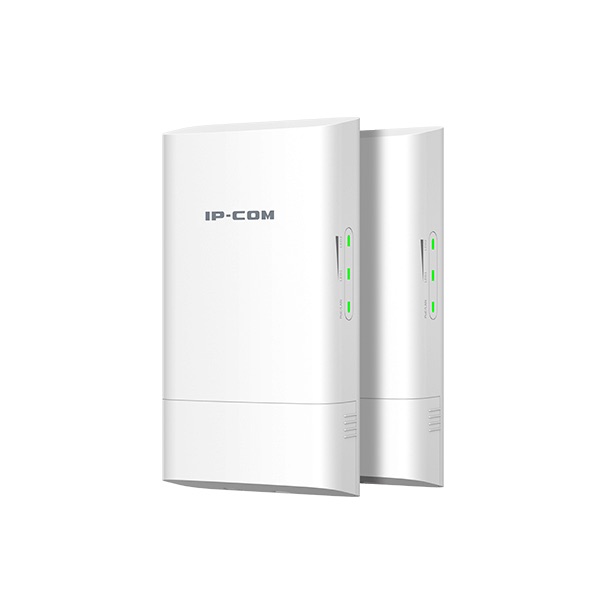

PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance

Frequency Range

5GHz

Compliant Standards

IEEE 802.11a/n/ac

Private TDMA Protocol

/

Maximum Wireless Rate

867Mbps

Interfaces

1*10/100Mbps LAN Port

Antennas Gain

9dBi

Antenna Beamwidth

Horizontal: 30° Vertical: 30° Elevation: 30°

Reset Button

1

Power Consumption

4.7W

Waterproof Level

IP65

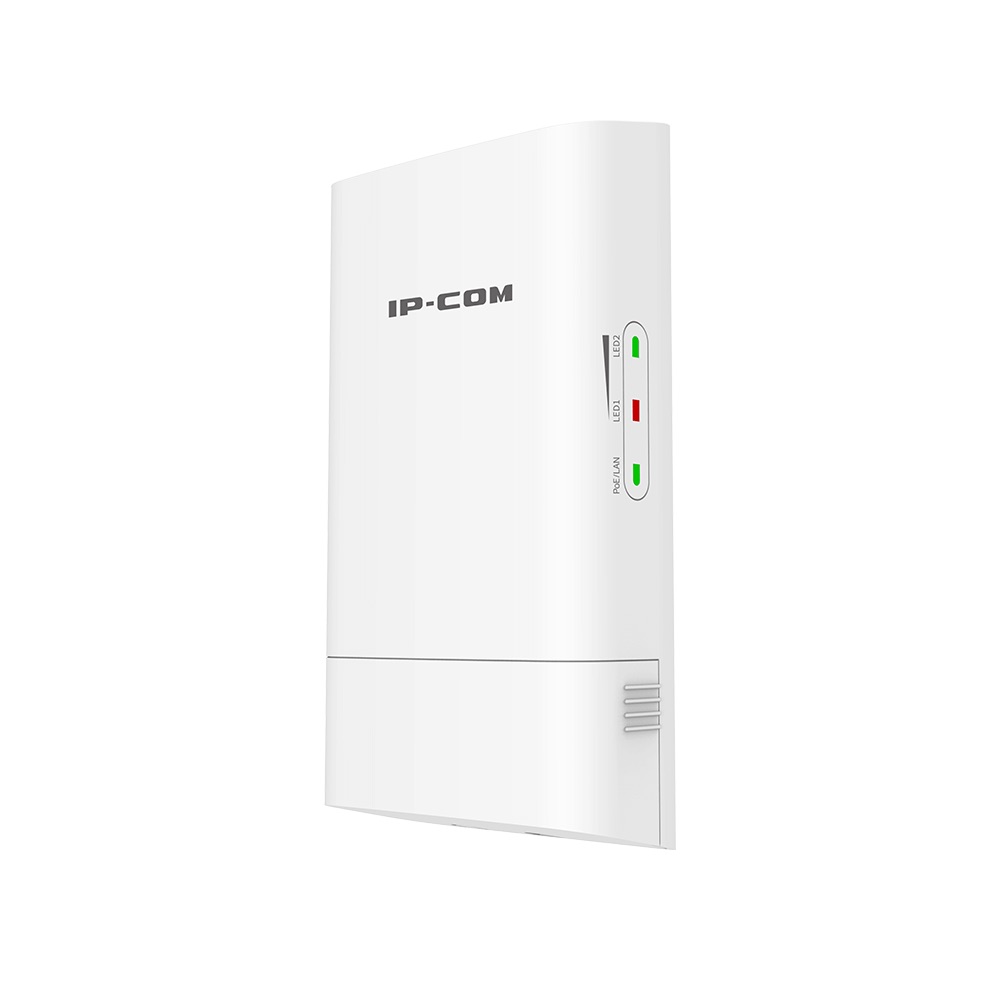

LED indicator

PoE/LAN,LED1,LED2

Power Method

12V 1A Passive PoE
12V 1A DC

Lightning Protection

/

PoE 802.3af/at

/

Passive PoE

Passive power over ethernet via PoE/LAN (+4,5pins; -7,8pins ) up to 60 meters
Voltage range: 9-13V DC

Receive sensitivity

11a 6Mbps  -92dBm±1.5dBm
11n MCS7 HT20  -72dBm±1.5dBm
11ac MCS9 HT80 -64dBm±1.5dBm

Operating mode

AP/Station

Enable/Disable Wireless Radio

Support

SSID Hidden

Support

Wireless Client isolation

Support

SSID Isolation

/

Channel Bandwidth

20/40/80MHz

Client Limitation For SSID

Support

Wireless Access Control

Support

Weak Signal Client Limitation

/

Transmission Power

Adjustable power by 1dBm

WMM Capable

Support

APSD Capable

Support

Wireless Security

64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK

Transparent Bridge

Support

VLAN Tagging for SSID

/

DHCP Server

/

VPN Pass-Through

PPTP,L2TP

Remote Web access

/

Schedule Reboot

Support

Page Timeout

Support

Ping Watchdog

Support

Dyndns

/

Network Diagnoses

/

Time&Date Setting

Support

Firmware upgrade

Support

Backup/Restore Configuration

Support

Username Managerment

Support

System Log

Support

Managed By Controller

PC Software -- CPE Controller

Package Contents

1*5GHz 9dBi ac 867Mbps Outdoor CPE
1*Power adapter
1*PoE  Injector
1*Quick Installation Guide

Operating Temperature

-30℃ ~ 60℃

Storage Temperature

-40℃ ~ 70℃

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Default login IP

192.168.2.1

Default Login Username

admin

Default Login Password

admin

Certifications

FCC/CE/RoHS
