Model

CPE3

Dimensions

190.35*80*67.5mm

Deployment

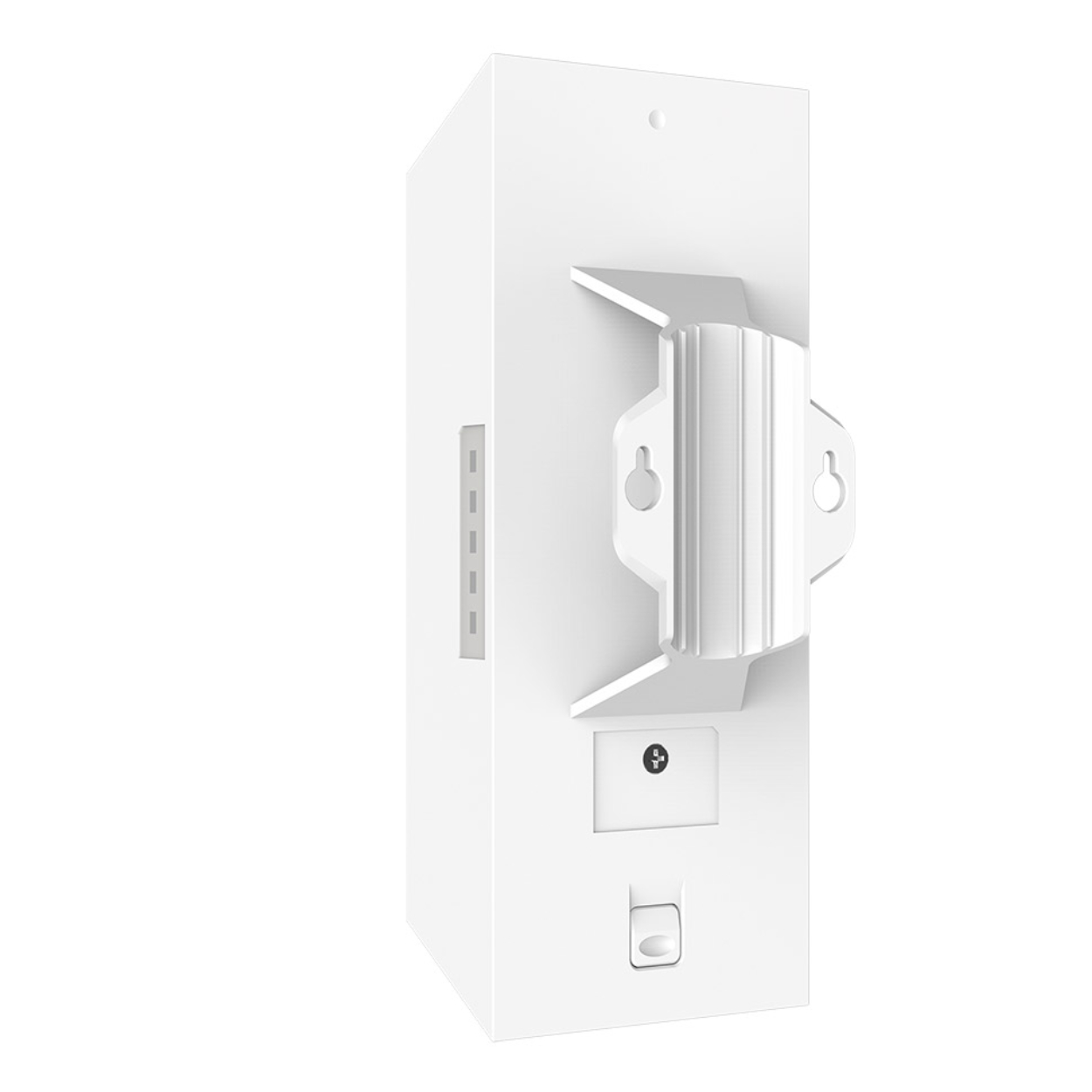

Pole Mount

Application Scenarios

Long range video surveillance,data transmission and WISP CPE

Frequency Range

2.4GHz

Maximum Wireless Rate

300Mbps

Waterproof Level

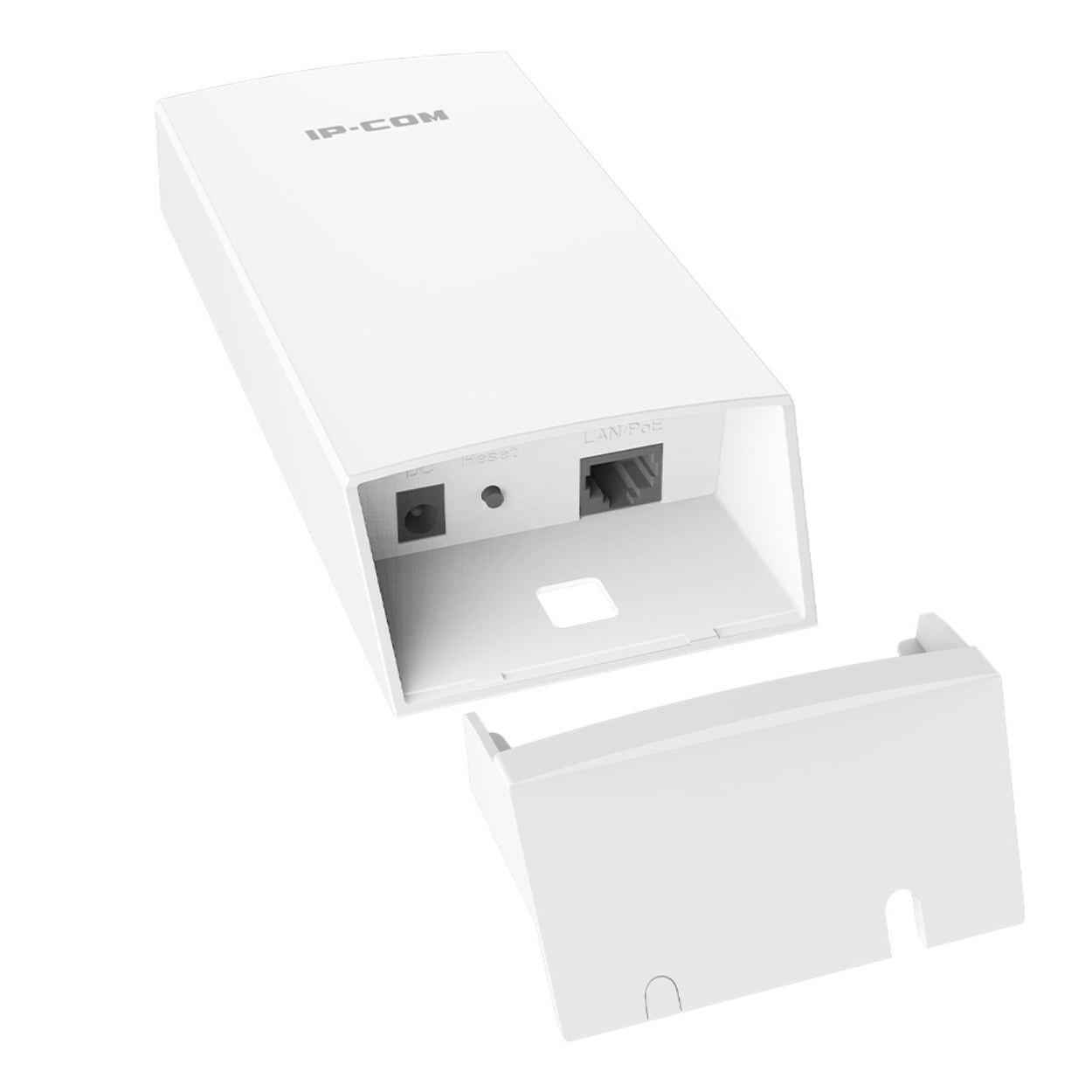

1*10/100Mbps PoE/LAN Port

Antennas Gain

8dbi

Antenna Beamwidth

Horizontal: 60° Vertical: 60°

Reset Button

1

Max Power Consumption

2.6W

Waterproof Level

IP65

LED indicator

PoE/LAN,WiFi,LED1,LED2,LED3

Power Method

DC or Passive PoE

Passive PoE

Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins)
Voltage range: 9-12VDC

Receiver sensitivity

MCS0: -92dbm
MCS7: -72dbm

Operating mode

AP/Station/WISP

Compliant Standards

IEEE 802.11b/g/n

Enable/Disable Wireless Radio

Support

SSID Hidden

Support

Wireless Client isolation

Support

SSID Isolation

Support

Client Limitation For SSID

Support

Wireless Access Control

Support

Weak Signal Client Limitation

Support

Transmission Power

Adjustable power by 1dBm

WMM Capable

Support

APSD Capable

Support

Wireless Security

64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2

Transparent Bridge

Support

VLAN Tagging for SSID

Support

DHCP Server

Support

VPN Pass-Through

PPTP,L2TP

Remote Web access

Support

Schedule Reboot

Support

Page Timeout

Support

Ping Watchdog

Support

Dyndns

noip, dyndns.org

Network Diagnoses

Ping, Traceroute, Signal Scan

Time&Date Setting

Support

Firmware upgrade

Support

Backup/Restore Configuration

Support

Username Managerment

Support

System Log

Support

Managed By Controller

PC Software -- CPE Controller

Package Contents

1*2.4GHz 8dBi Outdoor CPE
1*Power Adapter
1*PoE Injector
2*Plastic Staps
1*Quick Installation Guide

Operating Temperature

-30℃ ~ 55℃

Storage Temperature

-40℃ ~ 70℃

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Default login IP

192.168.2.1

Default Login Username

admin

Default Login Password

admin

Certifications

FCC/CE/RoHS
